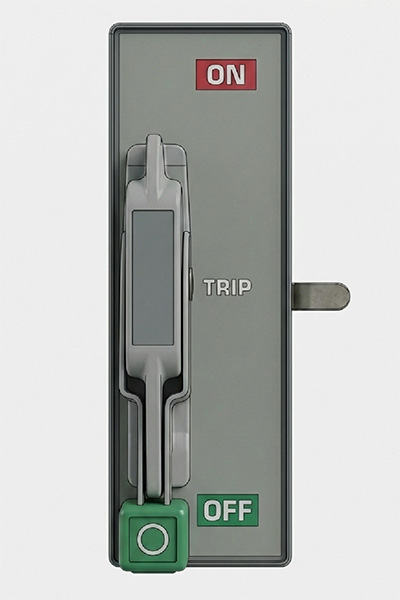

Square D — Model 6
Square D nameplate; T-handle/door hardware; confirm bucket and stab details
CALL OR TEXT Mon-Fri 8-5 ET
MCC Bucket Identification Guide
Start with the structure nameplate, then compare the door operator and bucket construction. A handle photo by itself is not enough to approve a replacement.
Send These Five Views
- Structure and bucket nameplates, readable and straight-on.
- Full front of the bucket with the door closed.
- Door operator, latch, and interlock hardware.
- Interior components, wiring, and all catalog numbers.
- Rear stabs, mounting points, plus bucket height and width.
Safety: De-energize, lock out, and verify absence of voltage before opening or removing MCC equipment. Work must be performed by qualified personnel.
Visual Family Reference
Use this as a short list, then confirm the nameplate and mechanical details with MCC Depot.
View Model 6 buckets
Square D — Model 5

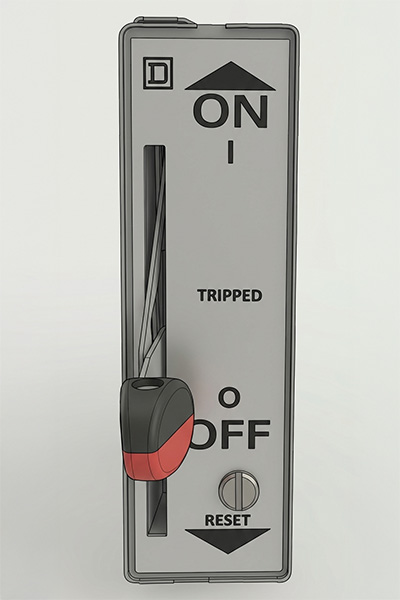

Square D structure nameplate; older door and operating-handle arrangement

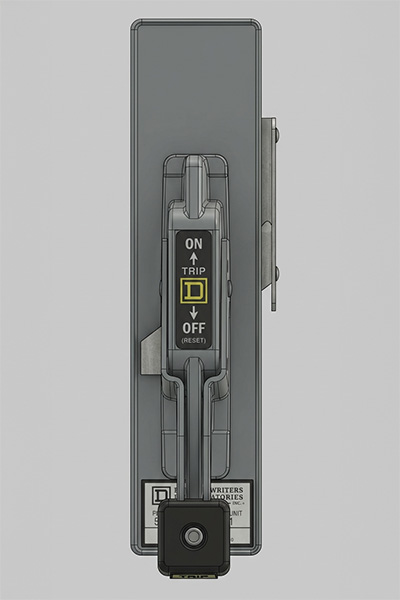

Square D — Model 4
Square D nameplate; legacy door, latch, operator, and stab arrangement

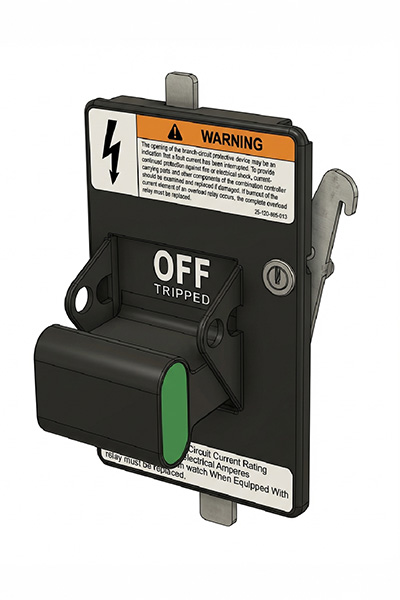

Siemens — Model 95+
Siemens structure label; slider/operator details; verify dimensions and rear connection
Siemens — Model 90

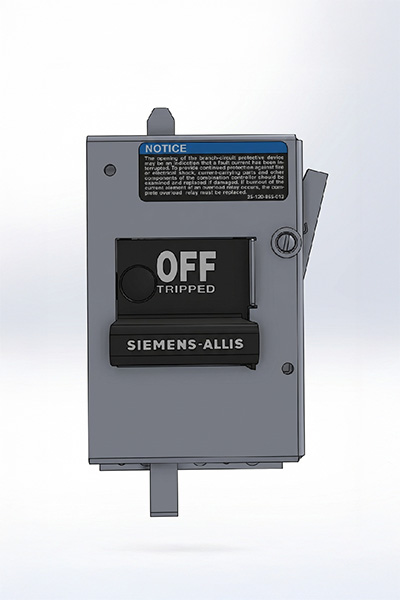

Siemens or Siemens-Allis nameplate; compare operator, door, and mounting details

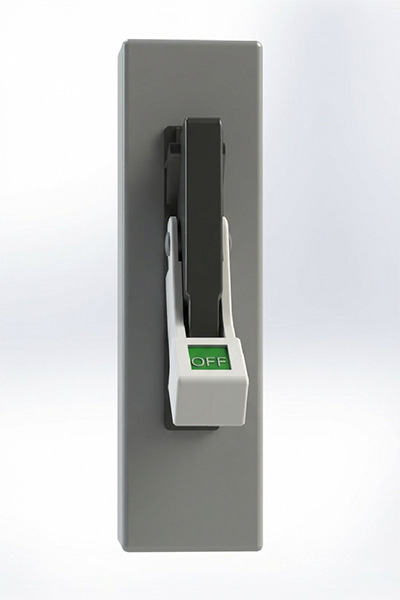

Siemens — Tiastar
Siemens label; flush rectangular operator; confirm lineup serial/model information
Furnas / Siemens — System 89

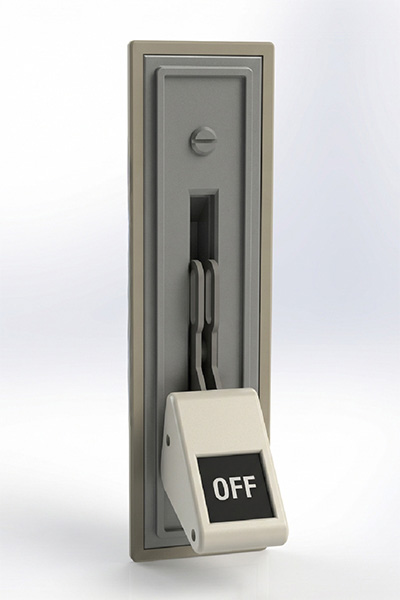

Furnas or Siemens-Furnas label; do not assume fit from the handle alone
GE / ABB — 8000

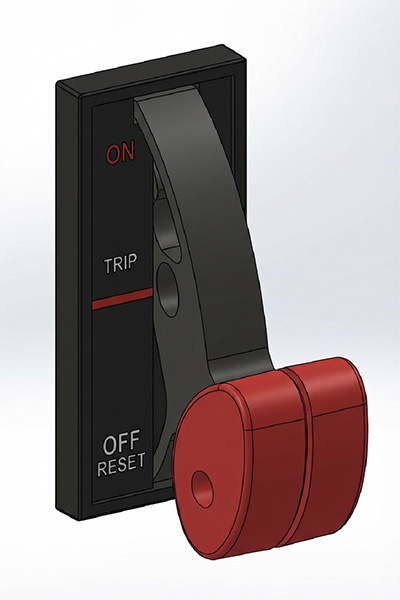

Structure nameplate; curved operator profile; verify series and stab assembly

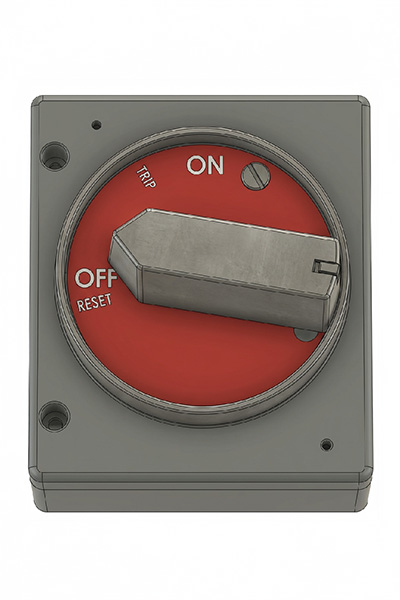

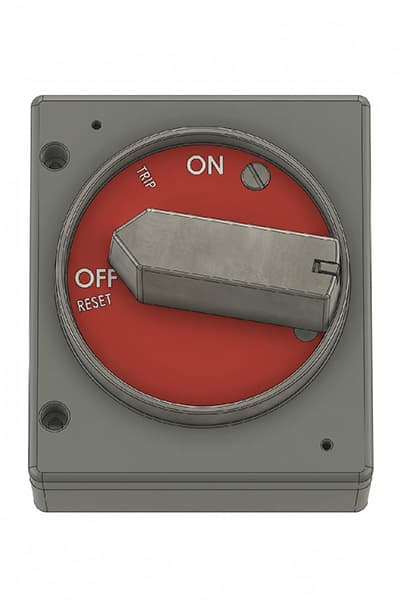

GE — 7700
Legacy GE nameplate; square door/operator arrangement; send rear photos
Cutler Hammer / Eaton — Freedom / F2100
Eaton or Cutler-Hammer label; lever operator; confirm exact lineup series

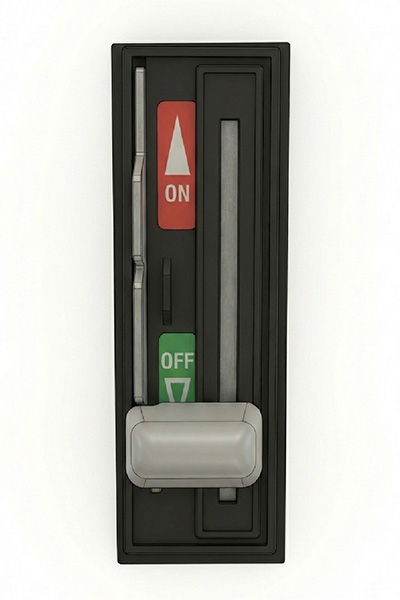

Cutler Hammer — Freedom Unitrol

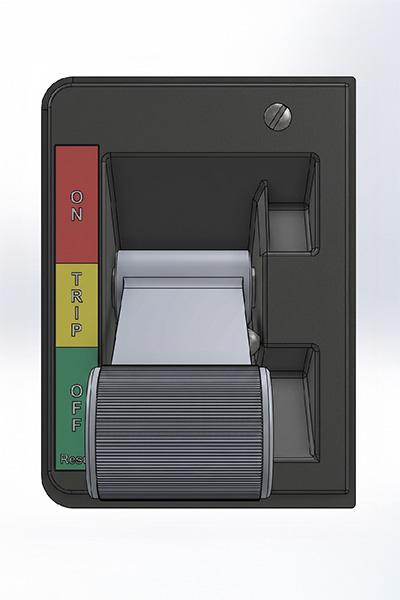

Cutler-Hammer or Westinghouse label; legacy operator and door arrangement
Allen-Bradley — CENTERLINE 2100

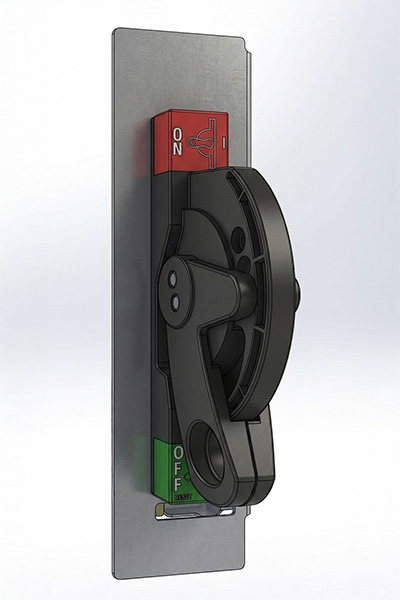

Allen-Bradley/Rockwell nameplate; series and unit type; verify stab and latch details

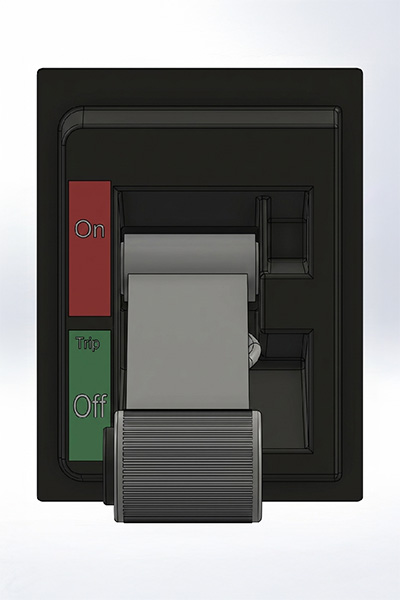

Westinghouse — 2100 / 5 Star
Westinghouse nameplate; operator, door, dimensions, and rear connection

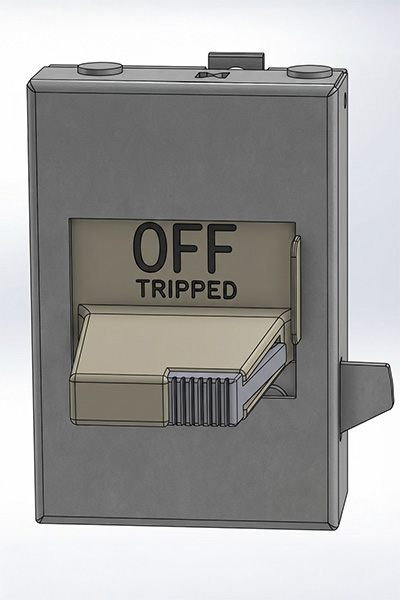

Westinghouse — Type W
Type W or structure label; legacy operator and stab arrangement
ITE / Gould — 5600

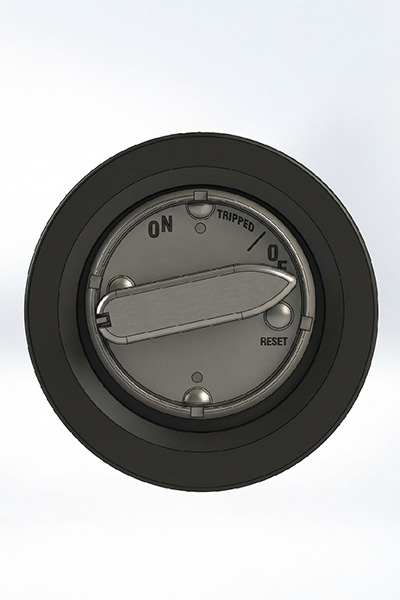

ITE or Gould nameplate; photograph the complete unit and section opening

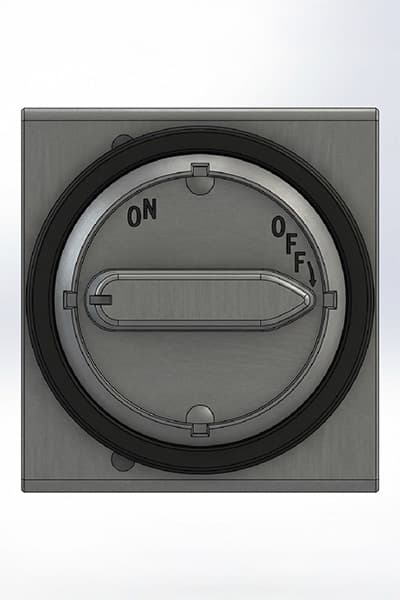

Federal Pacific — 5320 / 5325

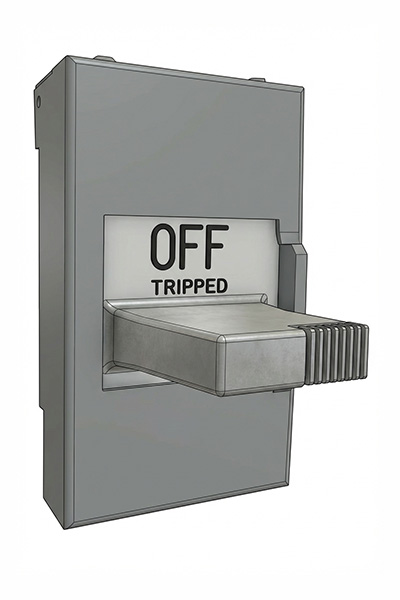

Federal Pacific nameplate; document operator, stabs, dimensions, and ratings
Still Not Sure?
Email the five views above with voltage, amperage, bucket size, and intended load.
