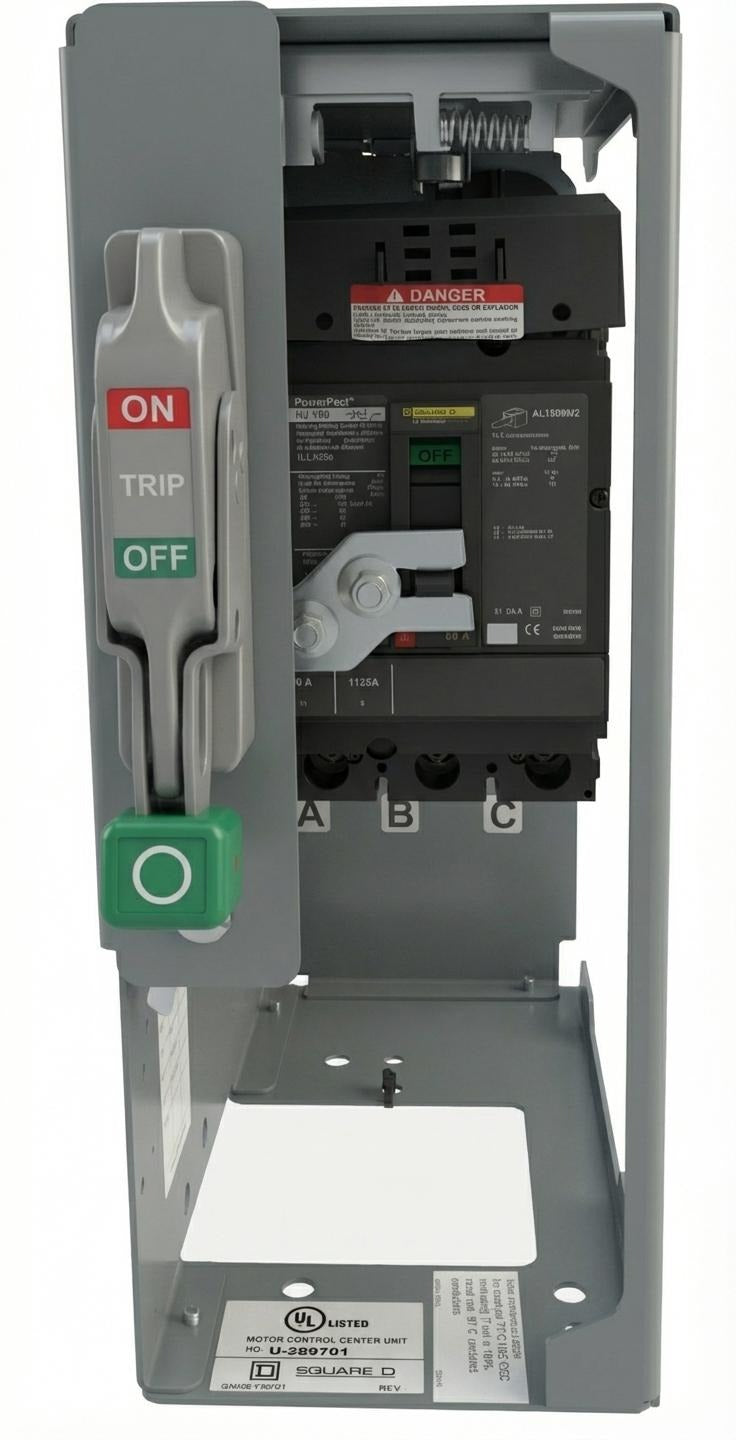

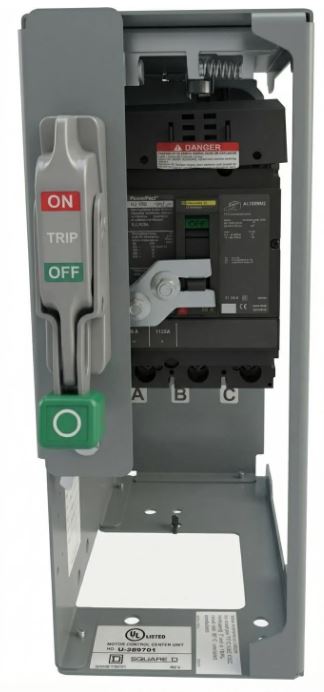

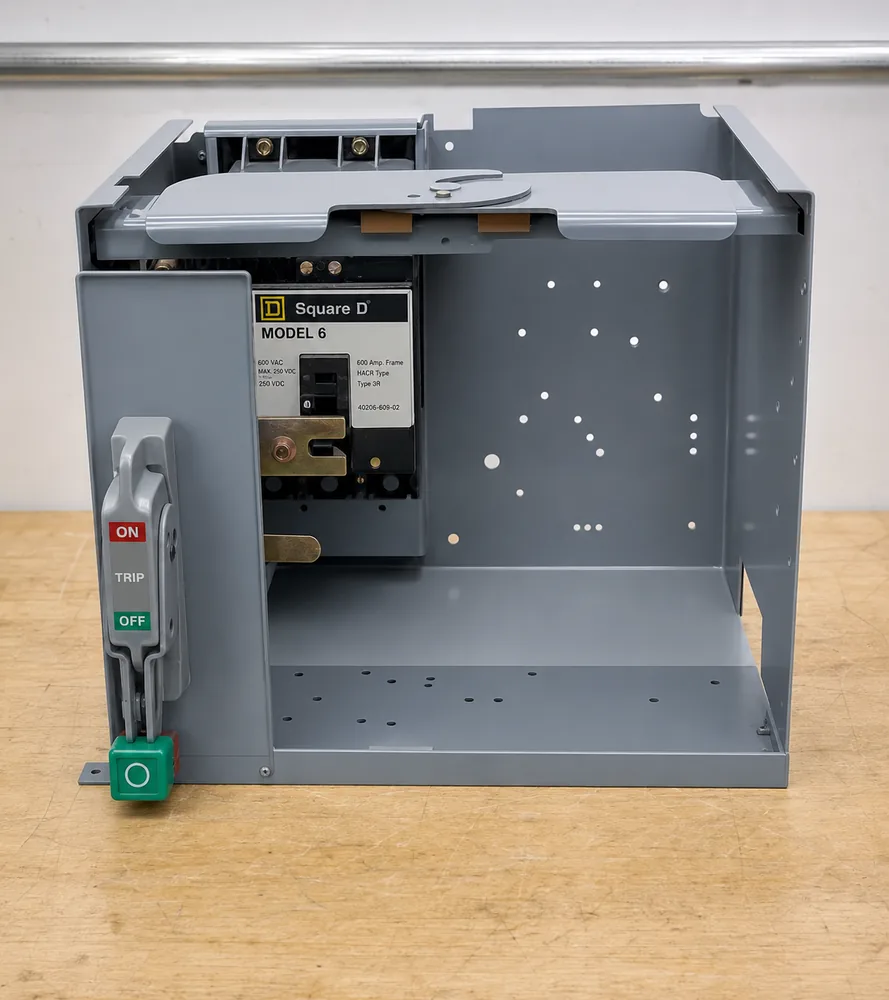

Square D Model 6 MCC Buckets
Call or email for a fast quote.
Built to order in MCC Depot's UL 508A panel shop.
- Built to order
- Includes the door and mounting hardware listed for the configuration
- Includes Square D® 65K AIC breaker
- Starter buckets available
- Questions? Call 307-442-0382 or email [email protected]
Send Your Specifications for a Quote
Email the manufacturer and model, amperage, voltage, bucket height, quantity, and photos or nameplate information. If you are not sure what you have, send clear photos and we will help identify it.
SQUARE D MODEL 6 FEEDER BUCKETS
Available feeder-bucket ratings and standard enclosure heights. Final configuration is confirmed by quote.
| BREAKER AMP RATING | DISCONNECT | VOLTAGE | AIC RATING |
|---|---|---|---|
| 15A | Breaker | 480V | 65 kA |
| 20A | Breaker | 480V | 65 kA |
| 25A | Breaker | 480V | 65 kA |
| 30A | Breaker | 480V | 65 kA |
| 35A | Breaker | 480V | 65 kA |
| 40A | Breaker | 480V | 65 kA |
| 50A | Breaker | 480V | 65 kA |
| 60A | Breaker | 480V | 65 kA |
| 70A | Breaker | 480V | 65 kA |
| 80A | Breaker | 480V | 65 kA |
| 90A | Breaker | 480V | 65 kA |
| 100A | Breaker | 480V | 65 kA |
| 125A | Breaker | 480V | 65 kA |
| 150A | Breaker | 480V | 65 kA |
| 175A | Breaker | 480V | 65 kA |
| 200A | Breaker | 480V | 65 kA |
| 225A | Breaker | 480V | 65 kA |
| 250A | Breaker | 480V | 65 kA |
All listed breakers are rated 65 kA AIC at 480V. Send the manufacturer, model, amperage, bucket height, voltage, quantity, and photos when available. Need another rating? Call 307-442-0382.
SQUARE D MODEL 6 ACCESSORIES
| DESCRIPTION | DIMENSIONS | SHIPS | QUOTE |
|---|---|---|---|
| 3" Filler Plate | 3" x 15.5" | IN STOCK | Request Quote |
| 6" Filler Plate | 6" x 15.5" | IN STOCK | Request Quote |
Need a starter, VFD, or a configuration you don't see here? Email [email protected] for a project quote.
